HIPAA-compliant document management: The complete 2026 guide
“HIPAA-compliant document management” isn’t a product toggle—it’s an operational system. The HIPAA Security Rule requires covered entities and business associates to ensure the confidentiality, integrity, and availability of ePHI through administrative, physical, and technical safeguards.
- Keeping documents HIPAA-compliant means focusing on key areas such as risk analysis, controlled access, encryption, audit logs, and working with trusted vendors that have signed a Business Associate Agreement (BAA).
- Updates from OCR (Office for Civil Rights) for 2024–2025 have highlighted two areas to watch: tracking technologies and rules around reproductive health privacy.
- The cost of healthcare data breaches in the U.S. remains one of the highest, with the average breach costing $7.42 million in 2025, according to IBM.
- If your team uses Google Workspace, make sure it’s properly configured before handling any sensitive patient data (PHI).
- Be cautious with free online PDF editors—many don’t meet HIPAA standards because they lack BAAs, use tracking tools, or don’t clearly define where your data is stored.
HIPAA-compliant document management is not just about where you store a file; it is about how that file moves through its entire lifecycle. From the moment a patient fills out an intake form to the final archive of their medical records, every interaction—editing, signing, sharing—must be governed by strict controls.
The Health Insurance Portability and Accountability Act (HIPAA) was designed to protect sensitive patient information, but modern workflows often outpace the old rules. This guide translates complex regulations into actionable steps for building a secure medical document workflow. You will learn how to ditch paper, secure your digital perimeter, and use tools like DocHub to streamline operations without compromising compliance.
What the law says: Core technical requirements for documents
The HIPAA Security Rule sets the standard for protecting electronic protected health information (ePHI). It differentiates between “required” and “addressable” specifications, but do not let the terminology fool you. In the context of a modern document management system, “addressable” usually means you must implement a solution or prove why an alternative is equally safe.
Technical safeguards in plain English
To maintain HIPAA compliance, your technology stack must meet specific criteria outlined in the regulations. These are not optional features; they are the bedrock of patient data security.
- Encryption and transmission security — 45 CFR §164.312(e)(1): HIPAA requires covered entities and business associates to implement technical security measures that guard against unauthorized access to ePHI transmitted over an electronic communications network. Encryption is an addressable implementation specification under the current Security Rule, although HHS’s proposed Security Rule update would generally require encryption of ePHI both at rest and in transit, subject to limited exceptions.
- Access controls — 45 CFR §164.312(a)(1): Implement technical policies and procedures that allow access to ePHI only to people or software programs that have been granted appropriate access rights. Unique user IDs, access permissions, emergency-access procedures, and other authentication controls help support this requirement.
- Audit controls — 45 CFR §164.312(b): Organizations must implement hardware, software, and/or procedural mechanisms that record and examine activity in information systems that contain or use ePHI. For document workflows, that means being able to determine who accessed or acted on sensitive files and when.
- Integrity — 45 CFR §164.312(c)(1): Organizations must implement policies and procedures that protect ePHI from improper alteration or destruction. Version histories, controlled editing, document-signing controls, and reliable audit records can support this requirement.
- Administrative safeguards — 45 CFR §164.308: Technical controls are only part of HIPAA compliance. Regulated organizations also need administrative safeguards covering areas such as security management, risk analysis, workforce security, information-access management, security incidents, contingency planning, and periodic evaluation.
- Security Rule documentation retention — 45 CFR §164.316(b)(2)(i): Required Security Rule documentation must be retained for six years from the date it was created or the date it was last in effect, whichever is later. Importantly, this six-year rule applies to HIPAA-required compliance documentation; it is not a universal six-year retention rule for patient medical records.
Important distinction: HIPAA’s current Security Rule still contains both required and addressable implementation specifications. The December 2024 Security Rule NPRM proposes removing that distinction and making implementation specifications required, subject to specific, limited exceptions. Until a final rule changes the regulation, organizations should distinguish current requirements from proposed requirements.
Pro Tip: Weak passwords are the entry point for most breaches. A robust system requires Multi-Factor Authentication (MFA) or OAuth 2.0 protocols to verify user identity. DocHub supports OAuth 2.0 authentication, adding a critical layer of security by ensuring that the person logging in is actually who they claim to be. This prevents unauthorized access even if a password is compromised. Beyond authentication, DocHub protects data in transit with 256-bit SSL encryption, adding a critical layer of security to every interaction.
What changes in 2025–2026: The proposed HIPAA Security Rule update
Healthcare organizations should also prepare for potentially stricter cybersecurity requirements. On December 27, 2024, HHS OCR issued a Notice of Proposed Rulemaking (NPRM) to strengthen the HIPAA Security Rule. As of September 2026, these cybersecurity changes remain proposals rather than final requirements, so they should not be described as already mandatory under HIPAA.
If finalized substantially as proposed, the rule would introduce or strengthen several controls relevant to document management:
- Multi-factor authentication (MFA): Regulated entities would generally be required to use MFA, with limited exceptions.
- Encryption: ePHI would generally have to be encrypted both at rest and in transit, with limited exceptions.
- Technology asset inventories: Organizations would need to create and maintain an inventory of technology assets and a network map showing how ePHI moves through their systems. These would need to be reviewed at least every 12 months and after relevant environmental or operational changes.
- More detailed risk analysis: Risk assessments would expressly need to consider the technology asset inventory, network map, anticipated threats, vulnerabilities, and risk levels.
- Annual compliance audits: Regulated entities would be required to conduct a Security Rule compliance audit at least once every 12 months.
- Vulnerability testing: The proposal calls for vulnerability scanning at least every six months and penetration testing at least once every 12 months.
- Network segmentation and configuration controls: The proposal would strengthen requirements around system configuration, anti-malware controls, unnecessary software, network ports, and network segmentation.
- Incident response and recovery: Organizations would face more specific incident-response and contingency-planning requirements, including procedures designed to restore certain systems and data within 72 hours.
For healthcare teams choosing document-management software in 2026, MFA, encryption, detailed auditability, access controls, and visibility into where ePHI is stored should therefore be treated as important procurement criteria even while the NPRM is pending.
Penalties and enforcement
HIPAA compliance failures can result in significant financial exposure. HHS adjusts civil monetary penalties for inflation, and the penalty amounts applicable in 2026 increased again.
Under the 2026 inflation adjustment, HIPAA civil monetary penalty ranges under 45 CFR §160.404 include:
| Violation category | 2026 minimum per violation | 2026 maximum per violation |
|---|---|---|
| Entity did not know and, exercising reasonable diligence, would not have known | $145 | $73,011 |
| Reasonable cause, not willful neglect | $1,461 | $73,011 |
| Willful neglect, corrected within the required period | $14,602 | $73,011 |
| Willful neglect, not corrected within the required period | $73,011 | $2,190,294 |
The inflation-adjusted regulatory table lists a calendar-year cap of $2,190,294 for violations of an identical requirement or prohibition. However, HHS has also maintained an enforcement-discretion policy establishing lower annual caps for the first three culpability tiers. Because the interaction between the inflation-adjusted regulation and that enforcement-discretion policy is complex, organizations should not treat $2.19 million as the automatic penalty for every violation. OCR determines penalties based on factors such as the nature and extent of the violation, resulting harm, culpability, correction efforts, and other statutory considerations.
Enforcement risk is another reason healthcare organizations should be able to document—not merely assert—that appropriate safeguards are operating. Risk assessments, access policies, BAAs, security procedures, audit records, incident-response documentation, and other required compliance records can become critical evidence during an OCR investigation.
Phase 1: Creating & digitizing patient forms
Paper documents are a liability. They can be lost, stolen, destroyed by fire, or viewed by unauthorized visitors walking past a messy desk. Moving to a digital document management system is the first step toward reducing these physical risks.
The problem with manual data entry
When a patient hands a clipboard back to your front desk, a staff member must manually type that data into your Electronic Health Records (EHR) system. This process is slow, prone to transcription errors, and creates a lag between intake and treatment. It also leaves paper records drifting around the office before they are scanned or shredded.
Creating fillable PDF forms
A more secure approach is to use fillable PDF forms. Patients can complete these on a tablet in the waiting room or via a secure link sent before their appointment. This digital-first approach ensures data enters your secure ecosystem immediately.
However, not all PDF forms are created equal. Standard web forms might send data via unencrypted email, exposing PHI. You need a solution that keeps the data within a secure, encrypted tunnel.
Web forms vs. paper forms
Digital web forms offer several advantages for operational efficiency:
- Legibility: No more deciphering handwriting.
- Validation: Ensure mandatory fields (like insurance ID) are not skipped.
- Automation: Data can flow directly into patient records without manual re-entry.
- Security: Forms submitted through a HIPAA-compliant platform are encrypted instantly.
By digitizing patient intake, you reduce the “paper trail” risk and accelerate the administrative side of patient care.
Pro Tip: DocHub allows you to create secure, fillable PDF forms that integrate seamlessly with Google Drive and Gmail. This ensures patient data is collected efficiently and stays protected within your existing Google Workspace environment.
Phase 2: Secure PDF editing & redaction (masking PHI)
Healthcare providers frequently need to edit documents or share specific parts of a medical record with insurers, specialists, or researchers. This often requires redacting sensitive information to follow the “Minimum Necessary” rule—sharing only the data required for the specific task.
The metadata trap
A common mistake in document workflows is “fake redaction.” This happens when a user draws a black rectangle over sensitive text using a standard drawing tool. To the human eye, the text is gone. But to a computer, the text is still there, sitting underneath the black box layer. Anyone with basic PDF knowledge can remove the box and reveal the patient data.
This is a significant HIPAA violation. True redaction must permanently remove the underlying data from the file structure.
Proper tools for redaction
You need a specialized tool designed to permanently scrub information. DocHub’s redaction tool allows you to select text or areas on a PDF and permanently remove that content. Once the document is saved, the redacted information is gone forever—it cannot be retrieved, searched, or uncovered.
Editing without risking integrity
Beyond redaction, authorized personnel often need to annotate records, highlight key history, or merge multiple PDFs into a single patient file. A HIPAA-compliant PDF editor logs these changes. You can see who added a note, who merged the files, and who applied the redaction. This ensures the integrity of the medical record remains intact throughout the editing process.
Pro Tip: DocHub’s redaction tool allows you to easily cover up and erase content on a PDF document. You can choose from these two methods for applying it to a page:
- Frame a box around an area
- Select and сover up text

Simple vs. HIPAA-compliant signatures
A simple electronic signature might just be a tick box or a typed name. A HIPAA-compliant electronic signature requires more rigorous identity verification and auditability.
To meet the standard, the signature process must generally ensure:
- Unique user identification: The signature is linked to a specific, verified user.
- Sole control: The signing credentials (such as a password or 2FA token) are under the signer’s sole control.
- Document integrity: The system must detect if the document was altered after signing.
Pro Tip: With DocHub, your team can streamline consent collection with HIPAA-compliant electronic signatures. The platform provides detailed audit trails for every signer and action, helping you maintain regulatory compliance.

Signer identity verification
When you send a consent form to a patient via email, how do you know the right person signed it? Reliable platforms like DocHub help mitigate this risk by offering secure Sign Requests that track the email authentication of the signer. For internal staff, role-based permissions ensure that only authorized providers can sign off on prescriptions or treatment plans.
Patient consent and legal weight
Under the ESIGN Act and UETA, electronic signatures have the same legal standing as wet ink signatures, provided consumers consent to do business electronically. In a healthcare setting, your workflow should include an initial agreement where the patient consents to using electronic records. Once established, this allows for rapid, remote signing of privacy notices and procedure authorizations, significantly improving operational efficiency.
Phase 4: Sharing & transmission (no more fax)
The fax machine is the zombie of healthcare technology—it refuses to die. Many organizations cling to faxing because they believe it is safer than email. While traditional faxing has some legal protections, it is operationally inefficient and prone to physical security failures (e.g., faxes sitting in a public tray).
Standard email (Gmail, Outlook, Yahoo) is generally not secure enough for transmitting ePHI unless you have specific encryption add-ons and enterprise configurations. Sending a patient’s diagnosis to patient@gmail.com without encryption is a clear compliance risk.
Secure links and permissions tips
Instead of sending unsecured file attachments, the compliant standard is to use encrypted, access-restricted links. DocHub helps you achieve this by letting you share documents as secure links or send them as Sign Requests. This gives you full control over who accesses PHI and when.
DocHub provides powerful access management features for every document you share:
- Admin, Contributor, Viewer: Assign permission levels based on the recipient’s role. Ensure recipients can only perform their required action.
- Revocation: Immediately revoke access if a document is shared in error, ensuring strong data protection and responsive risk management.
The role of the BAA (Business Associate Agreement)
If there is one acronym you must memorize, it is BAA.
A Business Associate Agreement is a legally binding contract between a HIPAA-covered entity (you) and a business associate (your software vendor). The BAA outlines the vendor’s responsibility to safeguard the PHI they process on your behalf.
Why is software illegal without a BAA?
Under the HIPAA Privacy Rule, you cannot use a third-party tool to store or process PHI unless that vendor signs a BAA. If you use a free PDF editor or a generic file storage app that refuses to sign a BAA, you are likely non-compliant the moment you upload a patient file.
Many general-purpose software tools explicitly state in their Terms of Service that you cannot use them for PHI. Ignoring this puts your organization at risk of massive fines during compliance reviews.
Vendor vs. clinic responsibility
The BAA creates a shared liability model. For example, the vendor (DocHub) agrees to maintain security measures like encryption, disaster recovery, and access logs. You (the clinic) agree to use the software correctly—setting strong passwords, managing user access, and not publishing secure links publicly.
Notice: Building a HIPAA-compliant document workflow is seamless with DocHub. To start, simply complete the form on the HIPAA page, and our team will contact you to guide you through the next steps.
Comparing HIPAA-ready document management platforms in 2026
A vendor saying that it “supports HIPAA” is not enough by itself. Healthcare organizations should verify whether the vendor will execute a BAA for the specific plan being purchased and whether the product provides the technical capabilities required by their workflow.
| Platform | BAA availability / eligible plan | Encryption | Audit trail / export | PDF redaction | eSignature |
|---|---|---|---|---|---|
| DocHub | Yes — BAA available with the Site License plan | Encrypted document workflows; secure storage and transmission controls | Yes — audit trails are available, including downloadable audit trails for eSigned documents | Yes — built-in Whiteout/redaction functionality permanently removes covered PDF content when applied as redaction | Yes — built-in signing and Sign Requests |
| Box for Healthcare | Yes — Box states that customers handling PHI must use Enterprise, Enterprise Plus, or Enterprise Advanced and execute a BAA | Encryption at rest and in transit | Yes — activity reporting and audit trails; enterprise reporting capabilities are available | Not a comparable native PDF-redaction workflow; Box documentation points users to integrations such as Adobe Acrobat for advanced PDF redaction | Yes — Box Sign is integrated into Box |
| ShareFile | Yes — HIPAA support and a BAA are available with Premium, Enterprise, VDR, or Industry Advantage accounts | Yes — secure/encrypted file-sharing and communication controls | Yes — detailed user/file activity logs and administrative reporting | No clearly documented native permanent PDF-redaction feature found in current public product documentation; verify for the selected configuration | Yes — integrated eSignature |
| SmartVault | Yes — SmartVault makes a standardized BAA available; current pricing documentation identifies HIPAA support and a signed BAA as compliance capabilities | Yes — SSL encryption for documents in transit plus security controls for stored information | Yes — activity logs provide a history of access and modification; confirm export requirements for your specific plan | No clearly documented native permanent PDF-redaction capability found in current public documentation | Yes — through DocuSign integration; current Accounting Unlimited includes eSignature functionality, while other eligible plans can use add-on/integrated options |
| Docsvault | HIPAA-supporting functionality is documented, but a standardized BAA and plan-specific BAA availability are not clearly stated in the current public documentation reviewed; verify directly with Docsvault before storing PHI | Yes — TLS/SSL in transit; at-rest encryption can use technologies such as BitLocker and SQL Server TDE depending on deployment | Yes — detailed audit trail and reporting capabilities | Yes — built-in PDF correction and permanent redaction tools | Yes — digital signatures/signature requests are available; some signature functionality is offered as an add-on |
For DocHub specifically, the current pricing page lists “HIPAA (BAA Available)” under the Site License plan, while Free, Basic, and Pro do not include BAA availability. Healthcare organizations that need to process PHI should therefore complete DocHub’s HIPAA onboarding process and execute the BAA before using the service for PHI.
Remember that no software purchase makes an organization HIPAA-compliant by itself. Configuration, workforce access, policies, risk management, vendor relationships, training, and day-to-day use all remain part of the covered entity’s or business associate’s compliance responsibilities.
Preparing for an audit: The importance of audit trails
HIPAA audits by the OCR (Office for Civil Rights) can be triggered by a reported breach, a patient complaint, or random selection. When an auditor knocks on your door, their first question will likely be: “Show me the logs.”
What the OCR checks
Auditors want to see evidence of your “due diligence.” They will look for:
- Access logs: Who looked at this patient’s file?
- Modification logs: When was this record changed?
- System activity: Are you reviewing your security alerts?
If you cannot produce these logs, you cannot prove compliance. “We think it’s secure” is not a legal defense.
Components of an ideal audit log
A compliant audit trail must be detailed and immutable (unchangeable). It should capture:
- Timestamp: The exact date and time (to the second) of the event.
- User ID: The unique identity of the person performing the action.
- Action type: Created, Viewed, Edited, Signed, Downloaded, Deleted.
- IP address: The location/network from which the action originated.

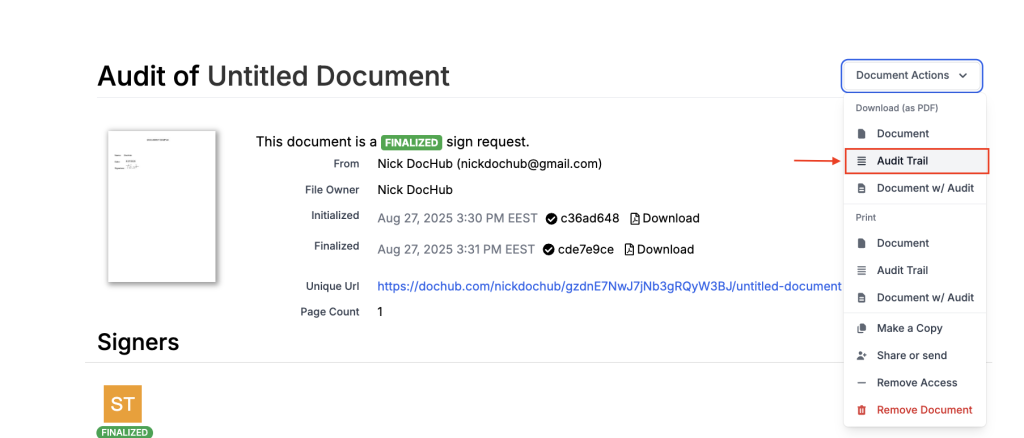

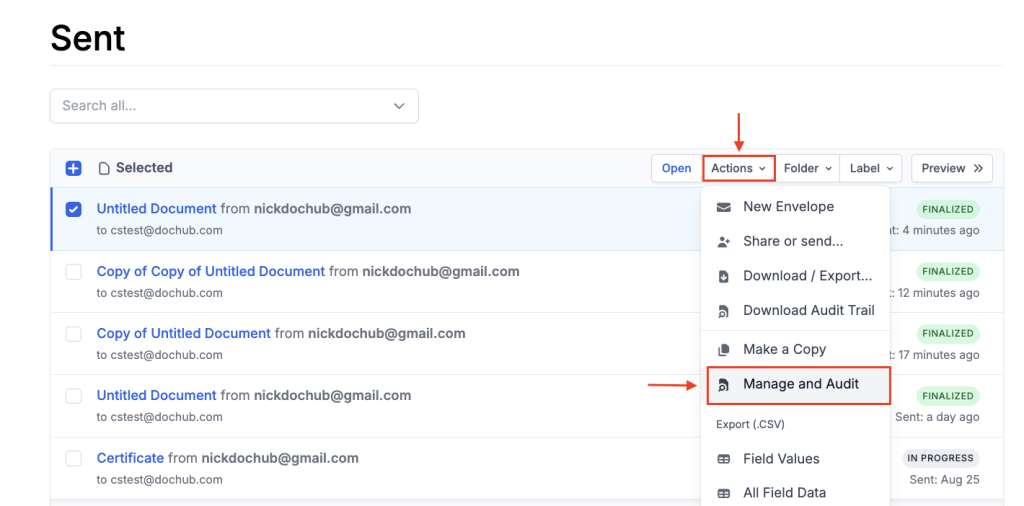

DocHub’s audit trail functionality
DocHub automatically generates a detailed audit trail for every document. You can view the full history of a file, tracking every interaction from upload to final signature. This unalterable record serves as your proof of compliance. In the event of a security inquiry, you can download these logs to demonstrate exactly how patient data was handled, satisfying the strict requirements of regulatory compliance. Learn more about the enhanced audit trail for your eSigned legal documents.

Retention and secure disposal of healthcare documents
HIPAA document retention is frequently misunderstood. There are two separate questions: how long HIPAA compliance documentation must be retained and how long the underlying patient medical record must be retained.
The HIPAA six-year rule
Under 45 CFR §164.316(b)(2)(i), documentation required by the HIPAA Security Rule must generally be retained for six years from its creation or from the date it was last in effect, whichever is later. HHS gives examples such as written policies and procedures and documentation of required actions, activities, and assessments. Similar six-year documentation requirements exist under the Privacy Rule.
This does not mean that HIPAA requires every medical record to be kept for six years. HHS explicitly states that the HIPAA Privacy Rule does not establish a general medical-record retention period.
State medical-record retention requirements
Medical-record retention periods are generally governed by state law and can vary by provider type, record type, patient age, and other circumstances. Some state requirements can require records to be retained longer than six years. Healthcare organizations should therefore maintain a retention schedule that maps each record category to the applicable federal and state requirements rather than automatically deleting every record after six years.
Historical state-by-state resources such as AHIMA’s State Tables 3 and 4 can help illustrate how retention rules vary, but older tables should not be treated as authoritative statements of current 2026 law. State statutes and regulations should be checked directly—or reviewed with legal counsel—before a retention schedule is adopted or changed.
Secure disposal after the retention period
Once a record has reached the end of its applicable retention period and there is no litigation hold, investigation, contractual requirement, or other legal reason to preserve it, disposal should prevent unauthorized recovery of PHI. HHS requires safeguards for PHI for as long as an organization maintains it, including during disposal.
For electronic media, organizations can align their sanitization program with NIST Special Publication 800-88 Revision 2, Guidelines for Media Sanitization, finalized in September 2025. NIST defines media sanitization as making access to target data infeasible for a given level of effort and recommends building a documented sanitization program appropriate to the sensitivity of the information and the media involved.
NIST SP 800-88 Rev. 2 also places greater emphasis on sanitization assurance—including verification and validation of sanitization outcomes—and addresses modern environments such as cloud storage and cryptographic erase.
A defensible healthcare retention-and-disposal policy should therefore answer four questions:
- What type of record is this?
- Which federal, state, contractual, litigation-hold, or other retention requirements apply?
- When does the applicable retention period expire?
- How will the organization securely sanitize or destroy the records and documents after disposal?
The practical rule is simple: retain HIPAA-required compliance documentation for the required period, follow applicable state and other laws for the medical record itself, and securely sanitize PHI when lawful disposal becomes appropriate.
Conclusion & checklist
HIPAA-compliant document management is an ongoing process, not a one-time setup. It requires a combination of vigilant staff training, strict internal policies, and the right technical tools. By shifting from paper-heavy, disjointed workflows to a unified, digital platform, you do not just tick compliance boxes—you improve the speed and quality of patient care.
Security is about control. You need to control who sees data, how it is changed, and where it goes. Tools like DocHub provide the technical infrastructure—encryption, OAuth 2.0, audit trails, and BAAs—to make that control possible.
Your compliance checklist
Before you process your next patient file, run through this summary to identify any gaps in your current workflow:
- Risk assessment: Have you identified where all ePHI lives and how it moves through your organization?
- Asset inventory: Do you maintain an inventory of systems and technology assets that store, process, or transmit ePHI?
- Vendor check: Have you executed a BAA with every business associate that requires one, and does the BAA actually apply to the plan you purchased?
- Access control: Does every staff member have a unique login? Have you implemented MFA where appropriate and prepared for the stronger MFA requirements proposed by HHS?
- Encryption: Is ePHI protected in transit and at rest, and can you document how encryption is implemented?
- Audit controls: Can you record, review, and—when needed—export evidence of activity involving ePHI?
- Integrity: Do your controls protect ePHI against improper alteration or destruction?
- Retention: Do you distinguish HIPAA’s six-year compliance-documentation rule from state medical-record retention requirements?
- Disposal: Does your organization have documented sanitization and destruction procedures aligned with applicable HIPAA safeguards and, for electronic media, standards such as NIST SP 800-88 Rev. 2?
- Training: Does your staff understand that ordinary email, consumer file-sharing services, and standard PDF tools may not be appropriate for PHI?
- NPRM readiness: Have you evaluated your MFA, encryption, asset inventory, network mapping, vulnerability testing, and incident-response practices against the proposed HIPAA Security Rule changes?
By addressing these points, healthcare organizations can confidently navigate the complexities of regulatory requirements. Secure your workflow today, and protect your patients’ trust as fiercely as you protect their health.
Disclaimer: The information contained in this blog post is provided for general informational purposes only and does not constitute formal legal advice.
Thank you!
Free HIPAA document security checklist
Glossary
- ePHI (Electronic Protected Health Information): Any protected health information that is created, stored, transmitted, or received in any electronic format. This includes patient names, medical records, billing information, and any other data that could identify an individual.
- BAA (Business Associate Agreement): A legally-binding contract between a HIPAA-covered entity (like a clinic) and a business associate (like a software vendor). This agreement requires the vendor to protect any ePHI they handle and outlines their liability in the event of a breach.
- Audit Trails: Detailed, unchangeable logs that record every action performed on a document or within a system. For HIPAA, audit trails must show who accessed ePHI, what they did, and when, providing a clear record of accountability for compliance reviews.
FAQ
What is HIPAA compliance for document management?
HIPAA compliance for document management is not a single product but an operational system. It involves implementing administrative, physical, and technical safeguards to protect the confidentiality, integrity, and availability of ePHI throughout its entire lifecycle.
Can I use free online PDF editors for HIPAA documents?
Generally, no. Most free online tools do not offer a BAA, which is a legal requirement for any vendor that processes ePHI. Furthermore, many free services use tracking technologies or have unclear data retention policies, creating significant compliance risks and the potential for impermissible disclosures of patient information.
What makes an electronic signature HIPAA-compliant?
A HIPAA-compliant electronic signature must be securely linked to a verified user and attached to a document in a way that detects any subsequent changes. The system must ensure the signature is under the signer’s sole control and provide a detailed audit trail that records who signed, when they signed, and from where.
