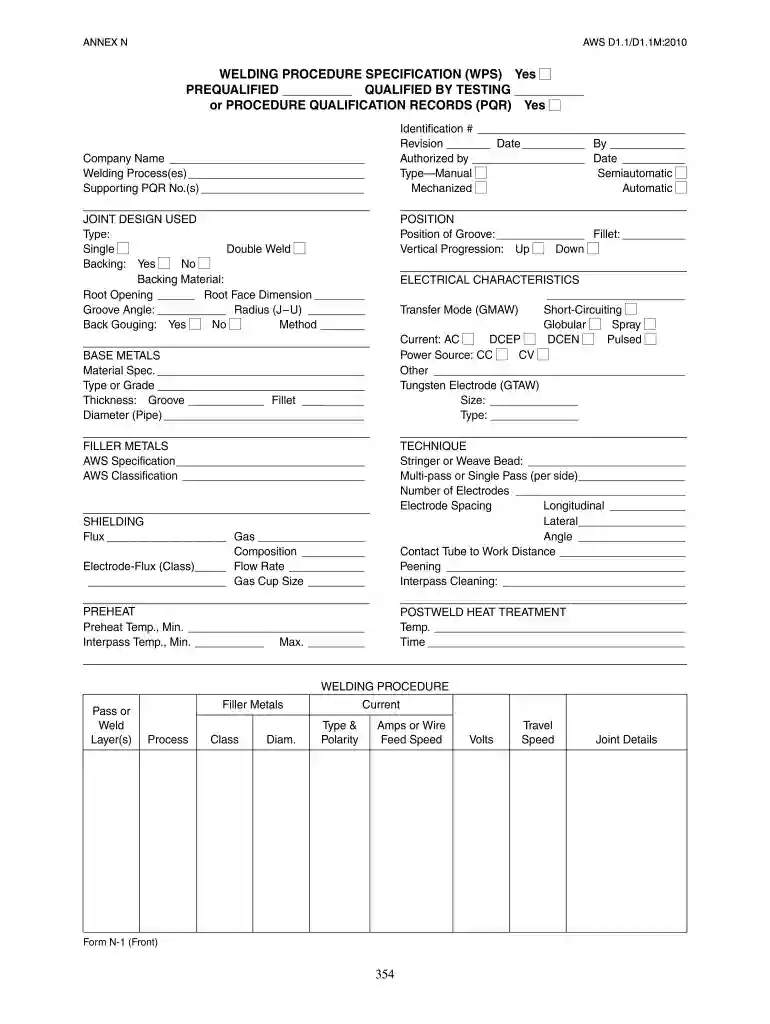

welding procedure specification template Preview on Page 1

Aws d1 forms 2026

The document is an annex of the AWS D1.1/D1.1M:2010 standard, detailing a Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR). It includes sections for identifying welding processes, joint design, electrical characteristics, base and filler metals, shielding techniques, preheat and post-weld heat treatment requirements, and test results for various welding tests. The document serves as a comprehensive guide for ensuring compliance with structural welding standards.

Here's how it works

01. Edit your welding procedure specification template online
Type text, add images, blackout confidential details, add comments, highlights and more.
02. Sign it in a few clicks
Draw your signature, type it, upload its image, or use your mobile device as a signature pad.
03. Share your form with others
Send welding d1 via email, link, or fax. You can also download it, export it or print it out.

How to use or fill out aws d1 forms with our platform

Ease of Setup

DocHub User Ratings on G2

Ease of Use

DocHub User Ratings on G2

Click ‘Get Form’ to open the aws d1 form in the editor.
Begin by filling in the identification number, revision date, and authorized signatures at the top of the form. This establishes the document's authenticity.
In the 'Welding Procedure Specification' section, select whether your procedure is prequalified or qualified by testing. Fill in details about your company name and welding processes used.
Complete the joint design section by specifying the type of weld (single or double), backing material, root opening, and groove angle. Ensure all dimensions are accurate.
Fill out electrical characteristics including transfer mode, current type, and power source. Specify tungsten electrode size and type if applicable.
Provide details on base metals and filler metals including specifications, classifications, and thicknesses.
Document shielding gas composition and flow rates as well as technique specifics such as bead type and interpass cleaning requirements.
Finally, complete sections on preheat temperatures, post-weld heat treatment, test results for tensile tests, visual inspections, and certifications at the end of the form.

Start using our platform today to streamline your aws d1 forms completion for free!

See more welding procedure specification template versions

We've got more versions of the welding procedure specification template form. Select the right welding procedure specification template version from the list and start editing it straight away!

Versions	Form popularity	Fillable & printable
2010	4.9 Satisfied (479 Votes)

be ready to get more

Complete this form in 5 minutes or less

Get form

What year is the latest edition of AWS D1 1?

1-2020 Edition.

Does AWS D1 1 expire?

ing to AWS D1. 1, Clause 4.2. 3.1, a welders qualification is effective indefinitely as long as that welder does not go more than six months without using that process.

How long is AWS D1 1 certification good for?

ing to American Welding Society AWS D1. 1, Clause 4.2. 3.1, a welders qualification is effective indefinitely, AS-LONG-AS, that welder does not go more than six months without using that process. Similar statements appear in ASME Section IX and most other welding codes.

What is the current version of AWS?

AWS CLI version 2, the latest major version of AWS CLI, is now stable and recommended for general use. To view this page for the AWS CLI version 2, click here. For more information see the AWS CLI version 2 installation instructions and migration guide.

What is the AWS D1 1 standard?

AWS D1. 1 covers material and design, fabrication, inspection, qualification, and reporting and recordkeeping as it pertains to structural steel fabrication and ion. Material and design requirements ensure the structural steel fabrication job gets off to the correct start.
