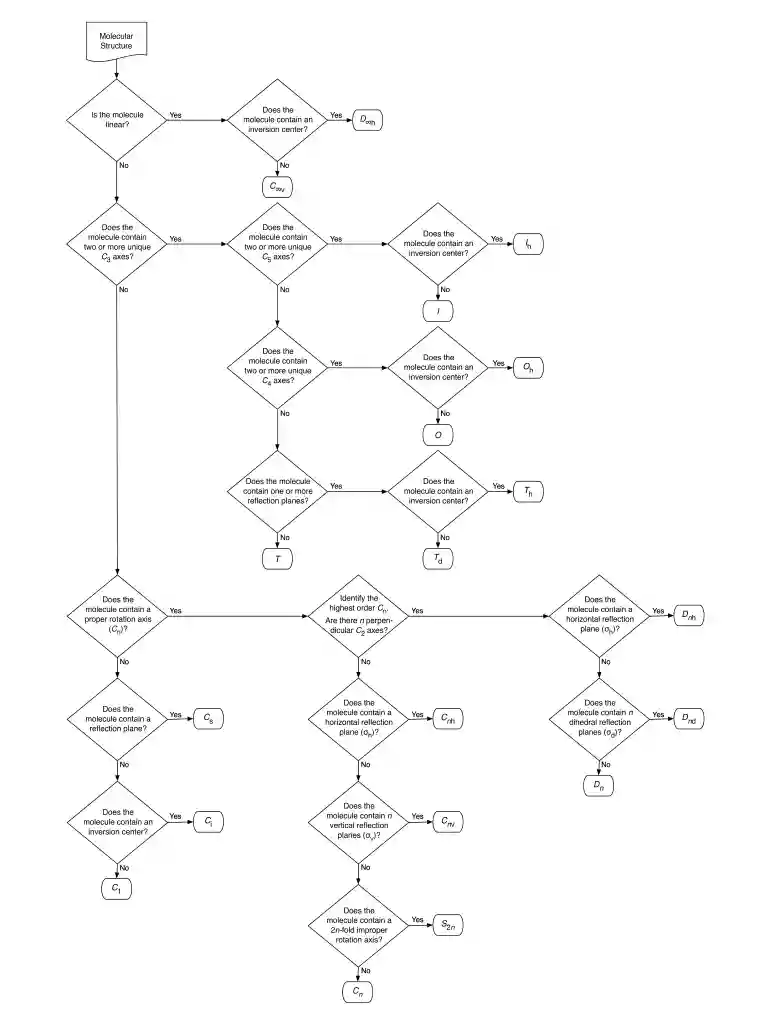

The document outlines a decision-making flowchart for determining the molecular symmetry and structure of a molecule based on various criteria, including the presence of linearity, inversion centers, unique rotation axes, reflection planes, and improper rotation axes.

Here's how it works

01. Edit your phys 272 dochub online

Type text, add images, blackout confidential details, add comments, highlights and more.

02. Sign it in a few clicks

Draw your signature, type it, upload its image, or use your mobile device as a signature pad.

03. Share your form with others

Send it via email, link, or fax. You can also download it, export it or print it out.

How to use or fill out the point group determination chart with our platform

Ease of Setup

DocHub User Ratings on G2

Ease of Use

DocHub User Ratings on G2

Click ‘Get Form’ to open the point group determination chart in the editor.
Begin by assessing if the molecule is linear. Select 'Yes' or 'No' based on your analysis.
Next, determine if the molecule contains an inversion center. Again, choose 'Yes' or 'No'.
Proceed to evaluate whether there are two or more unique C3 axes present in the molecule and select accordingly.
Continue this process for each question regarding unique C5 and C4 axes, reflection planes, and rotation axes, ensuring you answer each query based on your molecular structure.
Once all questions are answered, review your selections to ensure accuracy before finalizing your form.

Start using our platform today for free to streamline your document editing and form completion!

be ready to get more

Complete this form in 5 minutes or less

Get form

Got questions?

We have answers to the most popular questions from our customers. If you can't find an answer to your question, please contact us.

How to calculate point group?

Steps for assigning a molecules point group: If not, find the highest order rotation axis, Cn. Determine whether the molecule has any C2 axes perpendicular to the principal Cn axis. If so, then there are n such C2 axes, and the molecule is in the D set of point groups.

What is a point group in physics?

Point groups are used to describe the symmetries of geometric figures and physical objects such as molecules. Each point group can be represented as sets of orthogonal matrices M that transform point x into point y ing to y = Mx.

What is the formula for the point group?

Each point group can be represented as sets of orthogonal matrices M that transform point x into point y ing to y = Mx. Each element of a point group is either a rotation (determinant of M = 1), or it is a reflection or improper rotation (determinant of M = 1).

What is the CS point group?

The Cs Point Group Those properties belonging to irreducible representation A are symmetric to both the identity operation E as well as reflection through the mirror plane.

What is the th point group?

The Th point group is generated by two symmetry elements, which can be chosen as two distinct S6 axes, or an S6 with either C2 or h, or C3 and h. The lowest nonvanishing multipole moment in Th is 16 (hexadecapole moment).

What is an example of a c1 point group?

C1 Point Group The point group C1 is the point group with the lowest symmetry. Molecules that belong to this point group only have the identity as symmetry element. An example is the bromochlorofluromethane molecule (Fig. 2.2.

How to determine a point group?

Assigning Point Groups Determine if the molecule is of high or low symmetry. If not, find the highest order rotation axis, Cn. Determine whether the molecule has any C2 axes perpendicular to the principal Cn axis. Determine whether the molecule has a horizontal mirror plane (h) perpendicular to the principal Cn axis.

What is the order of the point group TD?

Td, *332, [3,3] or 43m, of order 24 achiral or full tetrahedral symmetry, also known as the (2,3,3) triangle group. This group has the same rotation axes as T, but with six mirror planes, each through two 3-fold axes. The 2-fold axes are now S4 (4) axes.
